혼다의 신차에 적용될 에코 어시스트(연비운전)
http://bloggernews.media.daum.net/news/2111840?RIGHT_BEST3=R8
가변 실린더 기술로 올해 초 ECO운전의 불을 당겼던 혼다에서 새로운 인사이트에 적용될 에코 어시스트에 대해서 발표 했습니다.
내년 상반기부터 판매가 예상되는 새로운 인사이트에 적용될 기술인데, 새로운 인사이트는 에코 어시스트 덕분에 연비면에서 더욱 좋아진다고 발표를 했습니다.
에코 어시스트란 운전자가 ECO 버튼을 누르는것 만으로 차량이 자동으로 최적의 연비 운전은 물론이고, 덧붙여 LCD 창을 통해 환경에 대한 경각심까지 일깨워 준다고 하네요
이를테면, 운전자가 ECON 버튼을 누르면 인사이트의 엔진과 CVT(트랜스미션)등 파워트레인과 관련된 시스템은 최적의 연비 운전모드로 바뀌면서 동시에 에어컨 컴프레셔의 제어와 브레이킹시 재생 시킬수 있는 배터리의 충전도 ECOM 버튼을 눌렀을때는 충전 성능도 더욱더 올라간다고 합니다.
그리고, 버튼을 누르지 않은 상황일때에도 속도계의 배경 색상을 바꾸면서 운전자에게 연비운전을 장려하기도 합니다. 부드럽게 조절하면서 연비 주행을 할때에는 바탕색이 녹색으로 변화하며 급하게 가속을 할 경우엔 파란색으로 변화됩니다.
계기판 내부에 위치한 MID(멀티 인포메이션 디스플레이)를 통해서는 실시간 연비와 함께 누적연비, 운전 습관에 따른 점수까지도 확인이 가능하다고 하네요
PRESS RELEASE:
Honda Insight to Introduce Ecological Drive Assist System in Spring 2009
Driver feedback system designed for fun and economy
American Honda Motor Co., Inc., today announced that a new interactive, driver-focused fuel economy enhancement technology named the Ecological Drive Assist System (Eco Assist™) will debut on the new Honda Insight in spring 2009.

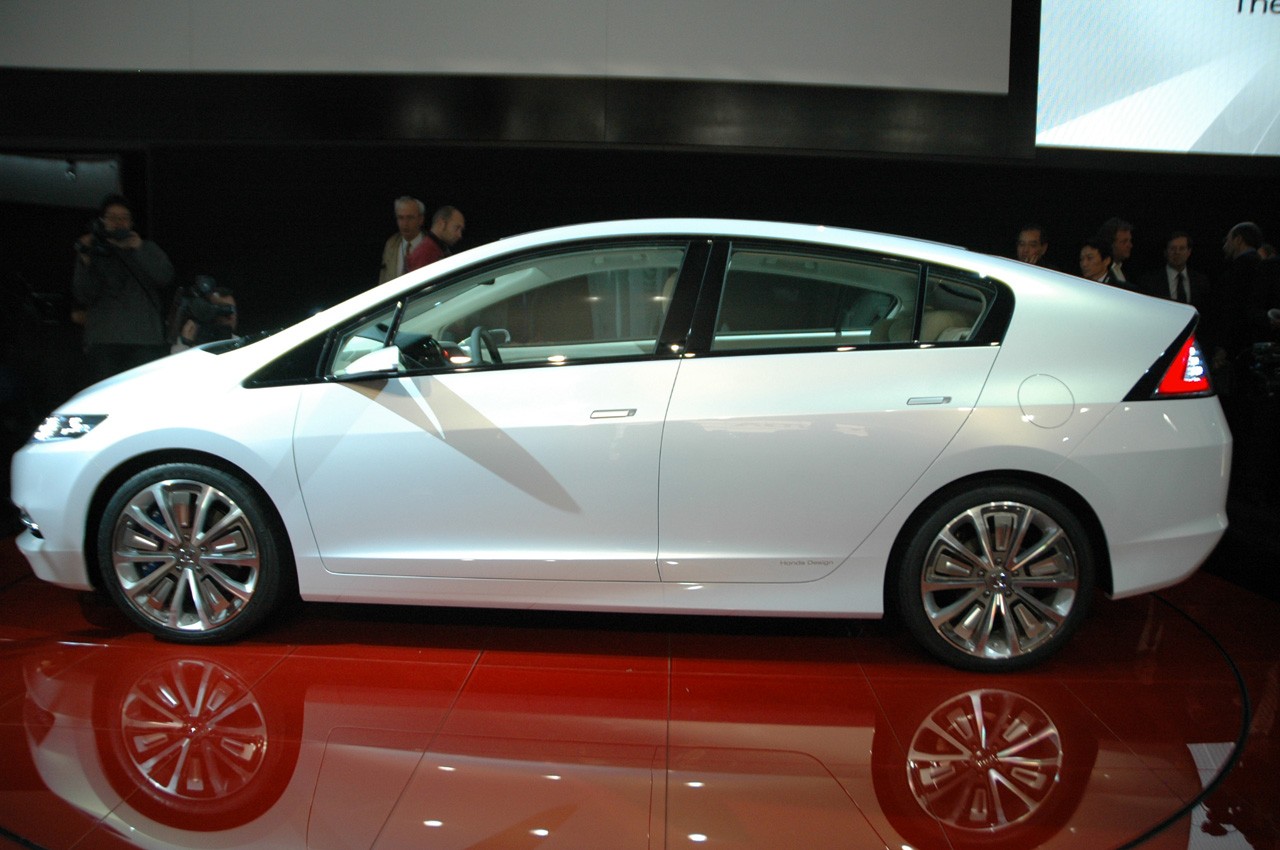

The Honda Insight Concept, making its North American debut at the Los Angeles Auto Show, provides a strong indication of the design and styling of the all-new gasoline-electric hybrid model from Honda.
Eco Assist combines multiple functions: the driver-activated ECON mode that optimizes control of the continuously variable transmission, engine and related powertrain components to conserve fuel; and a feedback function that uses speedometer background color to provide real-time guidance on environmentally responsible driving. An economy scoring function further provides feedback about current driving techniques, as well as feedback on cumulative, long-term driving style.
"Hybrid drivers enjoy trying to get the most fuel economy from their vehicles," said Dan Bonawitz, vice president of American Honda Motor Co., Inc. "The visual nature of Eco Assist is intended to help drivers improve their efficient driving skills by making the hybrid experience more fun and rewarding."
Honda developed the powertrain control, driver guidance and driver feedback functions of Eco Assist to help enhance real-world fuel economy. In particular, the scoring function provides cumulative, long-term feedback through graphic 'leaves,' which grow over time as drivers learn and implement driving practices that increase fuel economy.
Activated by a green "ECON" button on the instrument panel, ECON mode optimizes control of the transmission, engine and other powertrain elements to conserve fuel. ECON mode also adjusts
The guidance function uses the speedometer background's color-changing, three-dimensional appearance to indicate fuel efficiency in real time. Fuel-saving activities like smooth acceleration and braking make the meter glow green. Somewhat less efficient driving makes the meter glow blue-green. Aggressive starts and stops that consume extra fuel make the meter glow blue. By observing the speedometer background's response to driving practices and seeking to achieve a consistently green color, drivers can receive assistance in developing driving habits that typically enhance fuel economy.
The scoring function provides feedback about current driving practices, as well as cumulative, long-term feedback tracking progress. Located in the center of the instrument panel of the all-new Insight, the Multi-Information Display offers drivers a selection of informational displays, including the scoring function, in which the number of 'leaves' displayed indicates the level of environmentally responsible driving performance. When the ignition switch is on, the display scores driving practices in real time. When the ignition switch is turned off, the 'leaves' in the top line of the display score driving in the just completed cycle (startup to shutdown), while a horizontal bar in the lower part of the display scores cumulative lifetime performance.
The Multi-Information Display also allows drivers to view fuel economy figures for the past three trips, as well as instantaneous and average fuel economy statistics. The scoring function encourages drivers to take an interest in developing fuel efficient driving habits over the long term.
Going on sale in North America next spring, the all-new, purpose-built Insight will come to market at a price significantly below that of hybrids available today. From this unique position in the marketplace, the Insight will advance the affordability and accessibility of hybrid technology to a new generation of buyers.
With its affordable price, the new hybrid vehicle will represent the best value in its segment. Along with the Civic Hybrid, the new vehicle will be produced at an expanded hybrid vehicle production line at the Suzuka factory in Japan.
The Insight is expected to have annual global sales of 200,000 units per year -approximately 100,000 in North America. Following the launch of the new Insight, Honda also plans to introduce another unique sporty hybrid vehicle based on the CR-Z, a concept car first shown at the 2007 Tokyo Motor Show.
The original Honda Insight was introduced in December 1999 as North America's first gas-electric hybrid car. The original Insight was designed from the ground up to demonstrate the ultimate potential for fuel-economy in a two-seater subcompact automobile.
A leader in the development of cleaner, more fuel-efficient mobility products, Honda was the first to market low-emission gasoline vehicles, a gasoline-electric hybrid car in North America, and the world's first EPA-certified hydrogen fuel-cell vehicle, the FCX. In 2007, Honda was named "greenest automaker" by the Union of Concerned Scientists for the fourth straight time.
For more information and downloadable high-resolution images of the Insight Concept and other Honda vehicles, please visit www.hondanews.com. Consumer information is available at www.honda.com.
